HTML打包APK实现拍照、录像、录音和文件选择教程
HTML页面可以通过文件选择控件和浏览器媒体接口调用安卓设备的相机、摄像头、麦克风及文件选择器。完成页面代码后，再通过HTML一键打包APK工具配置相机和麦克风权限，即可生成支持拍照、录像、录音和文件选择的安卓APP。
如果你不了解HTML打包APK工具，想要进一步了解，可以查看官网：
创建文件采集页面

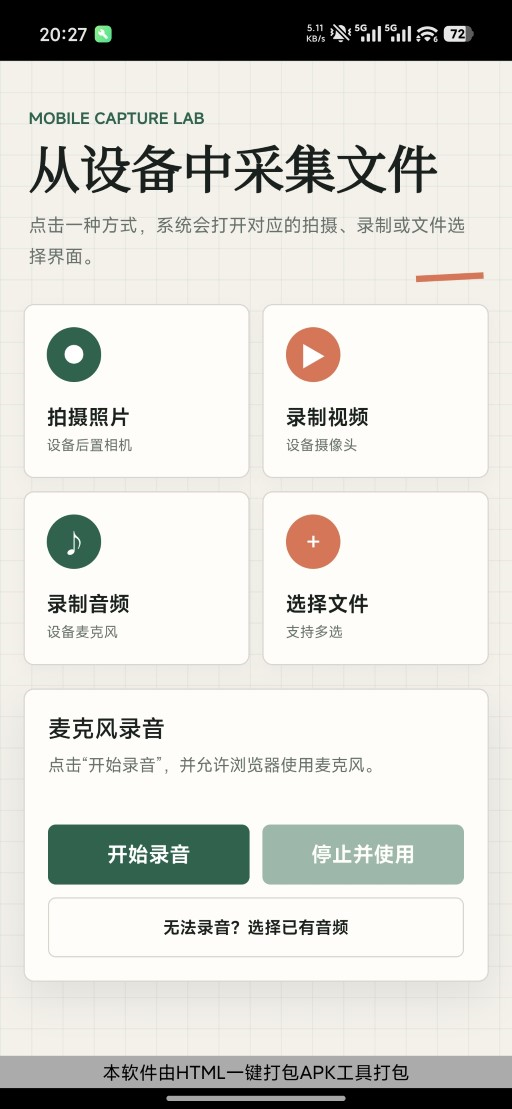

在HTML项目入口目录中创建 index.html，加入拍摄照片、录制视频、录制音频和选择文件四个入口。
- 拍摄照片：调用设备相机并优先进入后置摄像头拍照页面。
- 录制视频：调用设备摄像头并进入视频录制页面。
- 录制音频：申请麦克风权限，在网页内录制音频并生成可下载的音频文件。
- 选择文件：打开系统文件选择界面，并支持一次选择多个文件。也可以选择相机进行拍照或者录频
一个完整的html示例代码如下：
<!doctype html>
<html lang="zh-CN">
<head>
<meta charset="utf-8" />
<meta name="viewport" content="width=device-width, initial-scale=1, viewport-fit=cover" />
<meta name="theme-color" content="#f4f1ea" />
<title>移动端文件采集</title>
<style>
:root {
color-scheme: light;
--ink: #18201d;
--muted: #65706b;
--paper: #f4f1ea;
--surface: #fffdf8;
--line: #d8d5cd;
--green: #18634b;
--green-dark: #104b39;
--coral: #e56f51;
--shadow: 0 12px 32px rgba(24, 32, 29, 0.09);
}
* {
box-sizing: border-box;
letter-spacing: 0;
}
body {
min-width: 320px;
min-height: 100vh;
margin: 0;
color: var(--ink);
background:
linear-gradient(rgba(24, 99, 75, 0.055) 1px, transparent 1px),
linear-gradient(90deg, rgba(24, 99, 75, 0.055) 1px, transparent 1px),
var(--paper);
background-size: 24px 24px;
font-family: 'Noto Sans SC', 'Microsoft YaHei UI', sans-serif;
}
button,
input {
font: inherit;
}
[hidden] {
display: none !important;
}
.shell {
width: min(100%, 560px);
min-height: 100vh;
margin: 0 auto;
padding: max(24px, env(safe-area-inset-top)) 18px
max(32px, env(safe-area-inset-bottom));
}
header {
position: relative;
padding: 12px 4px 25px;
}
header::after {
position: absolute;
right: 4px;
bottom: 18px;
width: 52px;
height: 5px;
background: var(--coral);
content: '';
transform: rotate(-3deg);
}
.eyebrow {
margin: 0 0 8px;
color: var(--green);
font-size: 12px;
font-weight: 800;
text-transform: uppercase;
}
h1 {
margin: 0;
font-family: 'STSong', 'SimSun', serif;
font-size: clamp(32px, 10vw, 48px);
font-weight: 700;
line-height: 1.08;
}
.subtitle {
max-width: 360px;
margin: 12px 0 0;
color: var(--muted);
font-size: 14px;
line-height: 1.7;
}
.actions {
display: grid;
grid-template-columns: repeat(2, minmax(0, 1fr));
gap: 10px;
}
.picker {
position: relative;
min-width: 0;
min-height: 132px;
overflow: hidden;
border: 1px solid var(--line);
border-radius: 8px;
background: var(--surface);
box-shadow: 0 4px 12px rgba(24, 32, 29, 0.035);
}
.picker:focus-within {
outline: 3px solid rgba(24, 99, 75, 0.2);
outline-offset: 2px;
}
.picker input {
position: absolute;
width: 1px;
height: 1px;
opacity: 0;
pointer-events: none;
}
.picker label {
display: flex;
width: 100%;
min-height: 132px;
padding: 17px;
cursor: pointer;
flex-direction: column;
justify-content: space-between;
-webkit-tap-highlight-color: transparent;
}
.picker-button {
display: flex;
width: 100%;
min-height: 132px;
padding: 17px;
border: 0;
color: inherit;
background: transparent;
cursor: pointer;
flex-direction: column;
justify-content: space-between;
text-align: left;
-webkit-tap-highlight-color: transparent;
}
.picker label:active,
.picker-button:active {
background: #f2f7f3;
}
.icon {
display: grid;
width: 42px;
height: 42px;
border-radius: 50%;
color: #fff;
background: var(--green);
font-size: 20px;
place-items: center;
}
.picker:nth-child(2) .icon,
.picker:nth-child(4) .icon {
background: var(--coral);
}
.label-title {
display: block;
margin-bottom: 4px;
font-size: 16px;
font-weight: 800;
}
.label-meta {
display: block;
overflow: hidden;
color: var(--muted);
font-size: 11px;
text-overflow: ellipsis;
white-space: nowrap;
}
.result {
margin-top: 18px;
overflow: hidden;
border: 1px solid var(--line);
border-radius: 8px;
background: var(--surface);
box-shadow: var(--shadow);
animation: rise 240ms ease-out;
}
.result-header {
display: flex;
min-height: 52px;
padding: 12px 14px;
border-bottom: 1px solid var(--line);
align-items: center;
justify-content: space-between;
gap: 12px;
}
.result-header h2 {
margin: 0;
font-size: 15px;
}
.clear {
width: 34px;
height: 34px;
padding: 0;
border: 1px solid var(--line);
border-radius: 50%;
color: var(--ink);
background: transparent;
cursor: pointer;
font-size: 20px;
line-height: 1;
}
.file-list {
margin: 0;
padding: 0;
list-style: none;
}
.file-list li {
display: flex;
gap: 8px;
min-height: 68px;
padding: 10px 14px;
border-top: 1px solid var(--line);
align-items: center;
font-size: 12px;
}
.file-list li:first-child {
border-top: 0;
}
.file-info {
min-width: 0;
flex: 1;
}
.file-name {
display: block;
overflow: hidden;
font-weight: 700;
text-overflow: ellipsis;
white-space: nowrap;
}
.file-size {
display: block;
margin-top: 4px;
color: var(--muted);
}
.download-button {
min-width: 76px;
min-height: 40px;
padding: 0 12px;
border: 1px solid var(--green);
border-radius: 6px;
color: #fff;
background: var(--green);
cursor: pointer;
font-weight: 800;
flex-shrink: 0;
}
.recorder {
margin-top: 18px;
padding: 18px;
border: 1px solid var(--line);
border-radius: 8px;
background: var(--surface);
box-shadow: var(--shadow);
}
.recorder h2 {
margin: 0 0 6px;
font-size: 18px;
}
.recorder-status {
min-height: 42px;
margin: 0 0 14px;
color: var(--muted);
font-size: 13px;
line-height: 1.6;
}
.recorder-controls {
display: grid;
grid-template-columns: 1fr 1fr;
gap: 10px;
}
.recorder-controls button,
.audio-fallback {
min-height: 46px;
border: 1px solid var(--green);
border-radius: 6px;
color: #fff;
background: var(--green);
cursor: pointer;
font-weight: 800;
}
.recorder-controls button:disabled {
cursor: not-allowed;
opacity: 0.45;
}
.audio-fallback {
display: grid;
margin-top: 10px;
border-color: var(--line);
color: var(--ink);
background: transparent;
font-size: 13px;
place-items: center;
}
@keyframes rise {
from {
opacity: 0;
transform: translateY(8px);
}
to {
opacity: 1;
transform: translateY(0);
}
}
@media (min-width: 480px) {
.shell {
padding-inline: 26px;
}
.picker label {
min-height: 144px;
}
}
@media (prefers-reduced-motion: reduce) {
.result {
animation: none;
}
}
</style>
</head>
<body>
<main class="shell">
<header>
<p class="eyebrow">Mobile capture lab</p>
<h1>从设备中采集文件</h1>
<p class="subtitle">点击一种方式，系统会打开对应的拍摄、录制或文件选择界面。</p>
</header>
<section class="actions" aria-label="文件采集方式">
<div class="picker">
<input id="camera" type="file" accept="image/*" capture="environment" />
<label for="camera">
<span class="icon" aria-hidden="true">●</span>
<span
><span class="label-title">拍摄照片</span
><span class="label-meta">设备后置相机</span></span
>
</label>
</div>
<div class="picker">
<input id="video" type="file" accept="video/*" capture="environment" />
<label for="video">
<span class="icon" aria-hidden="true">▶</span>
<span
><span class="label-title">录制视频</span
><span class="label-meta">设备摄像头</span></span
>
</label>
</div>
<div class="picker">
<button id="openRecorder" class="picker-button" type="button">
<span class="icon" aria-hidden="true">♪</span>
<span
><span class="label-title">录制音频</span
><span class="label-meta">设备麦克风</span></span
>
</button>
</div>
<div class="picker">
<input id="files" type="file" multiple />
<label for="files">
<span class="icon" aria-hidden="true">＋</span>
<span
><span class="label-title">选择文件</span
><span class="label-meta">支持多选</span></span
>
</label>
</div>
</section>
<section id="recorder" class="recorder" aria-live="polite" hidden>
<h2>麦克风录音</h2>
<p id="recorderStatus" class="recorder-status">
点击“开始录音”，并允许浏览器使用麦克风。
</p>
<div class="recorder-controls">
<button id="startRecording" type="button">开始录音</button>
<button id="stopRecording" type="button" disabled>停止并使用</button>
</div>
<input id="audioFallback" type="file" accept="audio/*" hidden />
<label class="audio-fallback" for="audioFallback">无法录音？选择已有音频</label>
</section>
<section id="result" class="result" aria-live="polite" hidden>
<div class="result-header">
<h2 id="resultTitle">处理完成</h2>
<button
id="clearButton"
class="clear"
type="button"
aria-label="清除选择"
title="清除选择"
>
×
</button>
</div>
<ul id="fileList" class="file-list"></ul>
</section>
</main>
<script>
const inputs = document.querySelectorAll('input[type="file"]');
const result = document.getElementById('result');
const resultTitle = document.getElementById('resultTitle');
const fileList = document.getElementById('fileList');
const clearButton = document.getElementById('clearButton');
const openRecorder = document.getElementById('openRecorder');
const recorderPanel = document.getElementById('recorder');
const recorderStatus = document.getElementById('recorderStatus');
const startRecording = document.getElementById('startRecording');
const stopRecording = document.getElementById('stopRecording');
let activeInput = null;
let microphoneStream = null;
let recordingAudioContext = null;
let recordingSource = null;
let recordingProcessor = null;
let recordingGain = null;
let pcmChunks = [];
let pcmSampleCount = 0;
let isRecording = false;
let recordingTimer = null;
let recordingStartedAt = 0;
function formatSize(bytes) {
if (bytes === 0) return '0 B';
const units = ['B', 'KB', 'MB', 'GB'];
const unitIndex = Math.min(
Math.floor(Math.log(bytes) / Math.log(1024)),
units.length - 1
);
return `${(bytes / 1024 ** unitIndex).toFixed(unitIndex ? 1 : 0)} ${units[unitIndex]}`;
}
function clearSelection() {
if (activeInput) activeInput.value = '';
activeInput = null;
fileList.replaceChildren();
result.hidden = true;
}
function downloadFile(file) {
const reader = new FileReader();
reader.addEventListener('load', () => {
const link = document.createElement('a');
link.href = reader.result;
link.download = file.name || `文件_${Date.now()}`;
document.body.appendChild(link);
link.click();
document.body.removeChild(link);
});
reader.addEventListener('error', () => {
resultTitle.textContent = '下载失败，请重试';
});
reader.readAsDataURL(file);
}
function displayFiles(files, input = null) {
if (!files.length) return;
if (activeInput && activeInput !== input) activeInput.value = '';
activeInput = input;
resultTitle.textContent =
files.length > 1 ? `${files.length} 个文件处理完成` : '处理完成';
fileList.replaceChildren(
...files.map(file => {
const item = document.createElement('li');
const info = document.createElement('span');
const name = document.createElement('span');
const size = document.createElement('span');
const downloadButton = document.createElement('button');
info.className = 'file-info';
name.className = 'file-name';
name.textContent = file.name;
size.className = 'file-size';
size.textContent = formatSize(file.size);
downloadButton.className = 'download-button';
downloadButton.type = 'button';
downloadButton.textContent = '↓ 下载';
downloadButton.addEventListener('click', () => downloadFile(file));
info.append(name, size);
item.append(info, downloadButton);
return item;
})
);
result.hidden = false;
result.scrollIntoView({ behavior: 'smooth', block: 'nearest' });
}
function stopMicrophone() {
if (recordingTimer) clearInterval(recordingTimer);
recordingTimer = null;
isRecording = false;
if (recordingProcessor) recordingProcessor.disconnect();
if (recordingSource) recordingSource.disconnect();
if (recordingGain) recordingGain.disconnect();
recordingProcessor = null;
recordingSource = null;
recordingGain = null;
if (microphoneStream) microphoneStream.getTracks().forEach(track => track.stop());
microphoneStream = null;
if (recordingAudioContext && recordingAudioContext.state !== 'closed') {
recordingAudioContext.close().catch(() => {});
}
recordingAudioContext = null;
}
function createWavFile(chunks, sampleCount, sampleRate) {
const buffer = new ArrayBuffer(44 + sampleCount * 2);
const view = new DataView(buffer);
function writeText(offset, text) {
for (let index = 0; index < text.length; index += 1) {
view.setUint8(offset + index, text.charCodeAt(index));
}
}
writeText(0, 'RIFF');
view.setUint32(4, 36 + sampleCount * 2, true);
writeText(8, 'WAVE');
writeText(12, 'fmt ');
view.setUint32(16, 16, true);
view.setUint16(20, 1, true);
view.setUint16(22, 1, true);
view.setUint32(24, sampleRate, true);
view.setUint32(28, sampleRate * 2, true);
view.setUint16(32, 2, true);
view.setUint16(34, 16, true);
writeText(36, 'data');
view.setUint32(40, sampleCount * 2, true);
let offset = 44;
chunks.forEach(chunk => {
for (let index = 0; index < chunk.length; index += 1) {
const sample = Math.max(-1, Math.min(1, chunk[index]));
view.setInt16(offset, sample < 0 ? sample * 0x8000 : sample * 0x7fff, true);
offset += 2;
}
});
return new File([buffer], `recording-${Date.now()}.wav`, { type: 'audio/wav' });
}
inputs.forEach(input => {
input.addEventListener('change', () => {
const files = Array.from(input.files || []);
displayFiles(files, input);
});
});
openRecorder.addEventListener('click', () => {
recorderPanel.hidden = false;
recorderPanel.scrollIntoView({ behavior: 'smooth', block: 'nearest' });
});
startRecording.addEventListener('click', async () => {
const AudioContextClass = window.AudioContext || window.webkitAudioContext;
if (!navigator.mediaDevices?.getUserMedia || !AudioContextClass) {
recorderStatus.textContent =
'当前浏览器不支持网页录音，请使用下方按钮选择已有音频。';
return;
}
try {
microphoneStream = await navigator.mediaDevices.getUserMedia({
audio: { channelCount: 1, echoCancellation: true, noiseSuppression: true },
});
recordingAudioContext = new AudioContextClass();
await recordingAudioContext.resume();
recordingSource =
recordingAudioContext.createMediaStreamSource(microphoneStream);
recordingProcessor = recordingAudioContext.createScriptProcessor(4096, 1, 1);
recordingGain = recordingAudioContext.createGain();
recordingGain.gain.value = 0;
pcmChunks = [];
pcmSampleCount = 0;
isRecording = true;
recordingProcessor.onaudioprocess = event => {
if (!isRecording) return;
const samples = new Float32Array(event.inputBuffer.length);
event.inputBuffer.copyFromChannel(samples, 0);
pcmChunks.push(samples);
pcmSampleCount += samples.length;
};
recordingSource.connect(recordingProcessor);
recordingProcessor.connect(recordingGain);
recordingGain.connect(recordingAudioContext.destination);
recordingStartedAt = Date.now();
recorderStatus.textContent = '正在录音 00:00';
recordingTimer = setInterval(() => {
const elapsed = Math.floor((Date.now() - recordingStartedAt) / 1000);
const minutes = String(Math.floor(elapsed / 60)).padStart(2, '0');
const seconds = String(elapsed % 60).padStart(2, '0');
recorderStatus.textContent = `正在录音 ${minutes}:${seconds}`;
}, 1000);
startRecording.disabled = true;
stopRecording.disabled = false;
} catch (error) {
stopMicrophone();
const insecure = !window.isSecureContext;
recorderStatus.textContent = insecure
? '浏览器只允许 HTTPS 页面使用麦克风，请通过 HTTPS 打开本页。'
: '未能使用麦克风，请检查浏览器的网站麦克风权限。';
}
});
stopRecording.addEventListener('click', () => {
if (!isRecording || !recordingAudioContext || !pcmSampleCount) return;
isRecording = false;
const sampleRate = recordingAudioContext.sampleRate;
const duration = pcmSampleCount / sampleRate;
const recording = createWavFile(pcmChunks, pcmSampleCount, sampleRate);
stopMicrophone();
displayFiles([recording]);
recorderStatus.textContent = `录音处理完成（${duration.toFixed(1)} 秒），可在下方下载。`;
startRecording.disabled = false;
stopRecording.disabled = true;
});
clearButton.addEventListener('click', clearSelection);
window.addEventListener('pagehide', () => {
stopMicrophone();
});
</script>
</body>
</html>
页面中的拍照和录像入口可以分别使用带有 capture 属性的文件控件。拍照入口设置 accept="image/*"，录像入口设置 accept="video/*"，安卓APP会根据文件类型打开对应的系统采集页面。
拍摄照片：
<input type="file" accept="image/*" capture="environment" />
录制视频：
<input type="file" accept="video/*" capture="environment" />
音 频录制可以通过 navigator.mediaDevices.getUserMedia() 获取麦克风音频流，再使用浏览器音频接口处理并生成音频文件。普通文件入口不设置 capture，因此会保留系统提供的文件、照片和视频选择方式。
打包APK并配置权限
打开HTML一键打包APK工具，选择包含 index.html 的项目目录，填写应用名称、包名等打包信息。

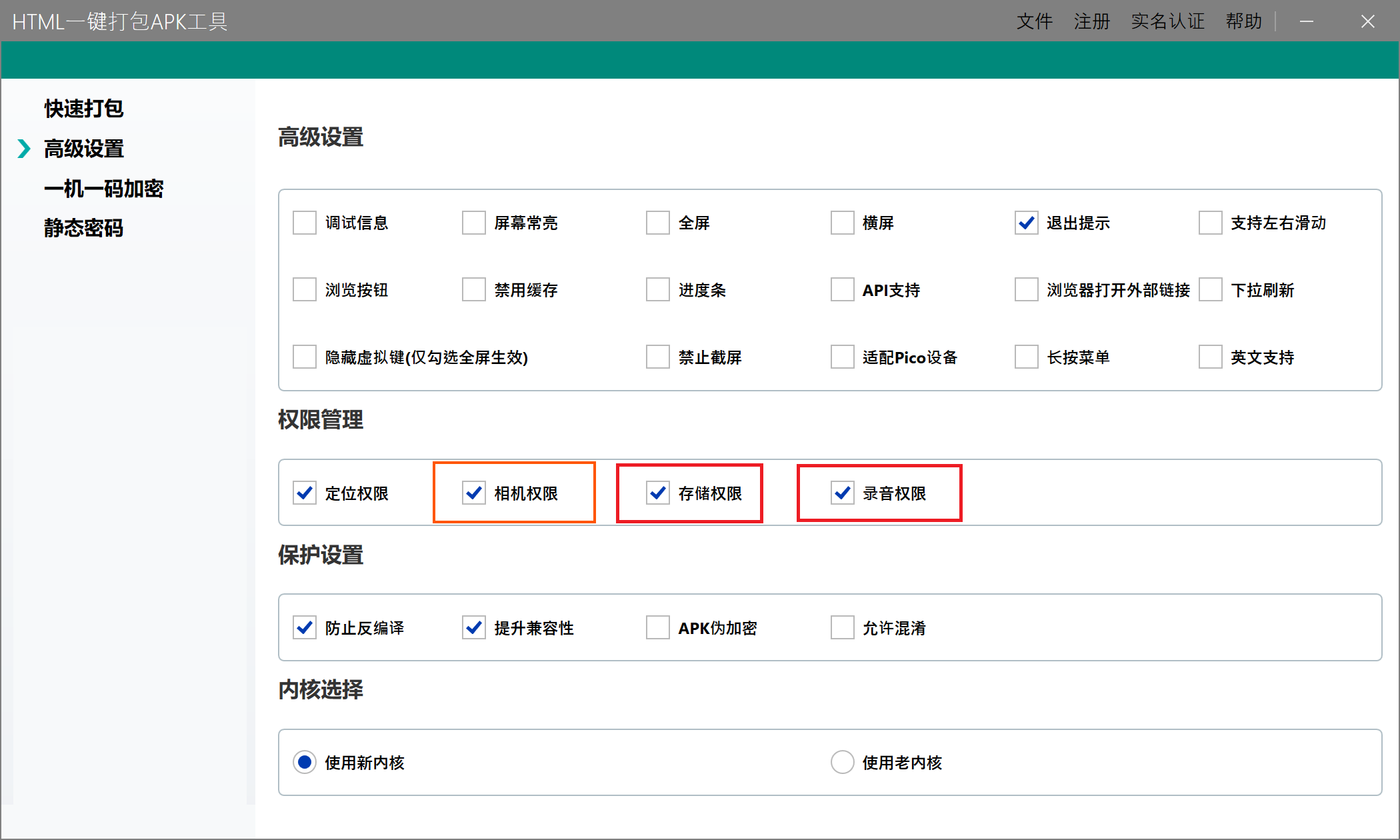

在权限设置中勾选“相机权限”和“麦克风权限”：
- 相机权限用于拍摄照片、录制视频以及网页调用摄像头。
- 麦克风权限用于网页录音；录制带声音的视频时也需要该权限。
- 普通文件选择通过安卓系统文件选择器完成，用户只会授权当前选择的文件。
确认配置后开始打包，等待工具生成APK文件。
安装并测试功能
将生成的APK安装到安卓手机，依次测试页面中的四个入口：
- 点击“拍摄照片”，确认APP直接打开相机拍照页面。
- 点击“录制视频”，确认APP直接打开视频录制页面，并且能够正常保存视频。
- 点击“录制音频”，首次使用时允许APP访问麦克风，停止录音后确认页面能够显示并下载录音文件。
- 点击“选择文件”，确认系统文件选择界面正常打开，并且可以选择一个或多个文件。
不同品牌手机使用的相机和文件管理应用可能不同，因此系统界面的样式会有差异。capture 属性用于告诉安卓当前需要拍照还是录像，但最终的采集界面由手机系统和默认相机应用提供。
如果拍照或录像入口没有打开对应页面，请先检查APP的相机权限；如果网页无法开始录音，请检查麦克风权限。对于在线页面，网页录音通常还要求通过HTTPS加载；打包到APP内的本地页面则由WebView和APP权限共同控制。
